    11pH Ampere Chlorine Dioxide Analyzer With Surfactant Resistant Membrane

    Ask Lasest Price
    Brand Name : Daruifuno
    Model Number : ADS2-U3A-CD7
    Certification : CE
    Price : Negotiable
    • Product Details
    • Company Profile

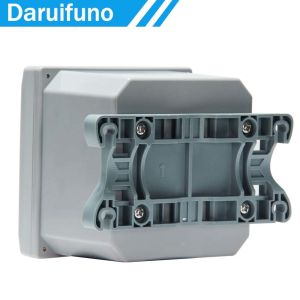

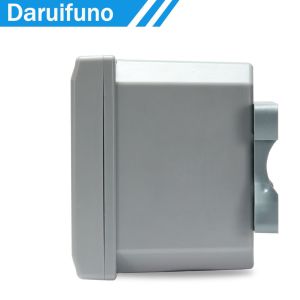

    11pH Ampere Chlorine Dioxide Analyzer With Surfactant Resistant Membrane


    11pH Ampere Chlorine Dioxide Analyzer With Surfactant Resistant Membrane


    Introduction


    When chlorine dioxide is used for disinfection, it is best to use it during production on site. Chlorine dioxide produces non-toxic substances after sterilization, which does not pollute the environmental water body.


    The ADS2-U3A-CD7 chlorine dioxide analyzer is a single-parameter instrument. The chlorine dioxide controller is connected to the DRFN sensor for measuring chlorine dioxide with a surfactant-resistant membrane at 1~11 pH.


    Advantages Of Chlorine Dioxide Analyzer


    1. Menu password can be set to facilitate hierarchical management;


    2. All the configuration entered by the user is kept indefinitely, even if there is no power, the data will not be lost.


    3. 128*64 black and white graphic dot matrix screen, and the display backlight provides always on and energy-saving mode selection.


    4. It has time and historical data recording functions to meet higher data management requirements.


    5. Abundant output meets monitoring, control, and remote data transmission at the same time.


    6. Two settable 0/4~20mA active current loop outputs, and each current output allows the user to specify what measurement value it represents.


    7. Two settable SPST relays. The setting objects include alarms for the high and low values of the measurement parameters, the control of the cleaning cycle of the sensor. The warning of the working environment temperature of the instrument.


    Applications Of Chlorine Dioxide Analyzer


    The instrument is used for disinfectant measurement in drinking water, swimming pool and industrial cooling water, water plant effluent and municipal pipe network monitoring.


    Parameters Of Chlorine Dioxide Analyzer


    Product NameChlorine dioxide analyzer
    Product Model

    ADS2-U3A-CD7

    Software Version

    DRFN chlorine dioxide Analysis software V1.0

    Display Range

    0.00-200.00mg/L

    Resolution

    0.001 mg/L

    Accuracy

    Better than 0.15% of the measuring range

    Stability

    0.05% of the measuring range every 24 hours, no accumulation

    Repeatability

    Better than 0.1% of the measuring range

    Relay Control

    2 settable SPST relays, the max. load 3A/250VAC

    Sensor Self-diagnosis

    screen image and buzzer prompt

    Analog Current Output

    2 settable 0/4~20mA active current loop output max. load 1000Ω

    Communication Method

    RS485, MODBUS RTU; support JSON text data format

    Display Screen

    128*64 LCD

    Time History/Data Record

    Year/month/day/hour/min/second, record 14000 historical data

    Protection Grade

    IP66

    Operating Environment

    0~60℃, relative humidity less than 95%

    Storage Environment

    -20~70℃, relative humidity less than 55%

    Shell Material

    Enhanced ABS

    Dimensions

    144*144*120mm (hole size 138*138 mm)

    Mounting Method

    Wall mounting, pipe clamping, panel installation

    Power Supply

    100~240V AC

    Weight

    800g

    Power Consumption

    12W


    The Matching Chlorine Dioxide Sensors Recommendation

    • Model: CD7
    • pH range: 1~11
    • Pressure range: 0~1 bar, no pressure surges and/or fluctuations
    • Temperature range: 0~ 50℃

    • Integrated automatic temperature compensation

    • Response time: T90 about 90s
    • Flow rate: about 30 l/h, low flow-dependence
    • Shaft length: standard 175 mm, and up to 220 mm in length (mA-Version)
    • Connection: for mA-version 2-pole terminal, M12 male

    • Material: PVC-U, stainless steel 1.4571, semipermeable membrane


    Item numberTypeMeasuring range:
    ppm
    Resolution:
    ppm
    Output signalPower supply
    3226620CD7H-M0c0.005~2.0000.001Modbus RTU

    9~30 VD

    20~56 mA

    3226621CD7N-M0c0.05~20.000.01
    3226622CD7L-M0c0.5~ 200.00.1
